Cable Trackers
Magtrack 400-series
4-sensor subsea cable tracking systems.
For cables from 0-6000m depth
Centimetric relative and accurate 3D cable positioning
Precise cable fault pinpointing
Roll/pitch compensated sensors
Low power consumption
Compact, robust and lightweight
Description

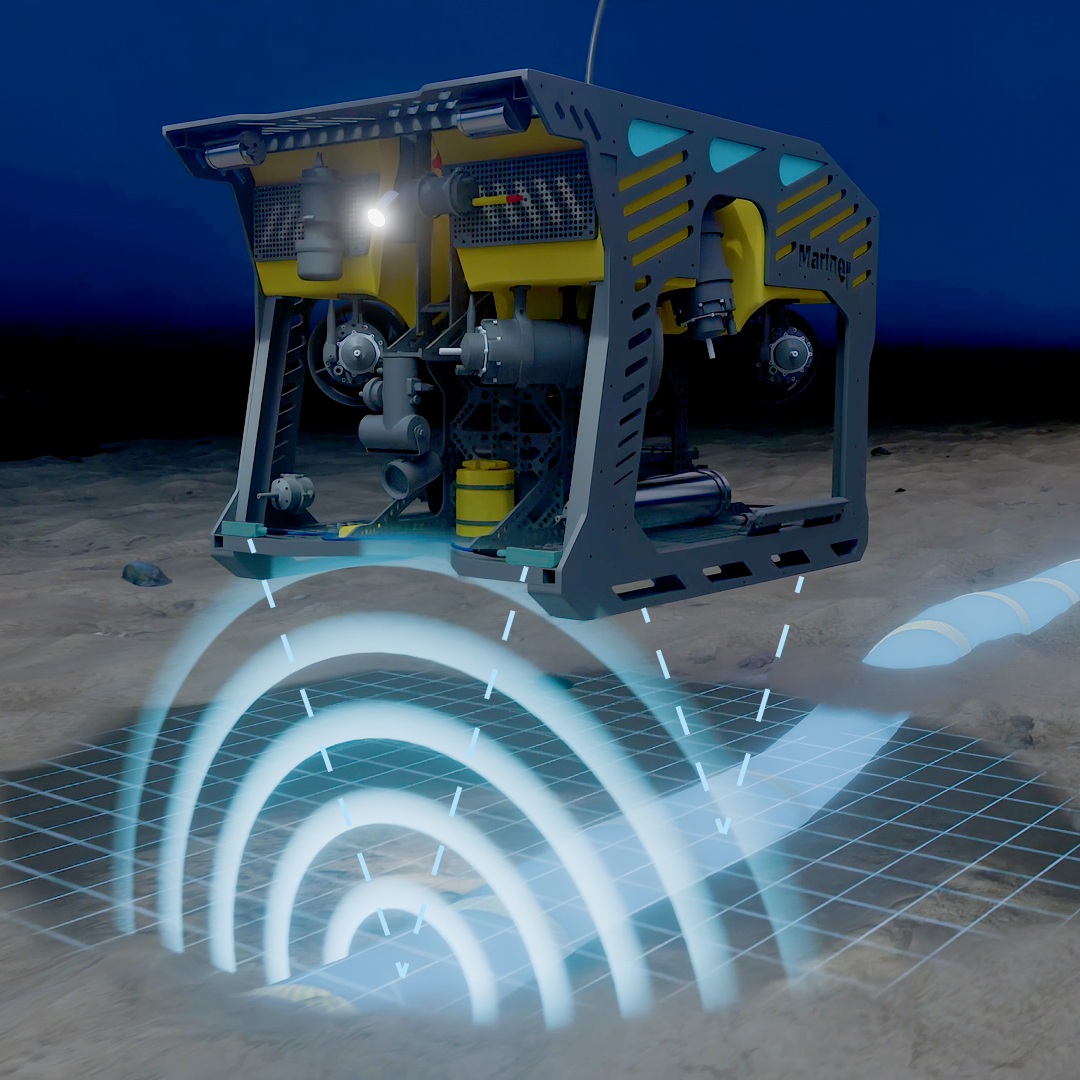

The Magtrack is a cable tracker system with 4 small sensors which integrate 3-axis fluxgate magnetometers and inclinometers. It can accurately detect cable positions, track the cable and show burial depth. It is typically installed in front of and in the rear of an ROV or a trencher which allows to also determine the slope of the cable.
The subsea electronics module (SEM) is the hub where pre-processing of the sensor data takes place. Raw and pre-processed data are transferred from the ROV to the surface vessel. The Magtrack data can be processed further in a survey system together with other relevant information.
Magtrack 460
Depth rating: 6000msw
Coming soon.

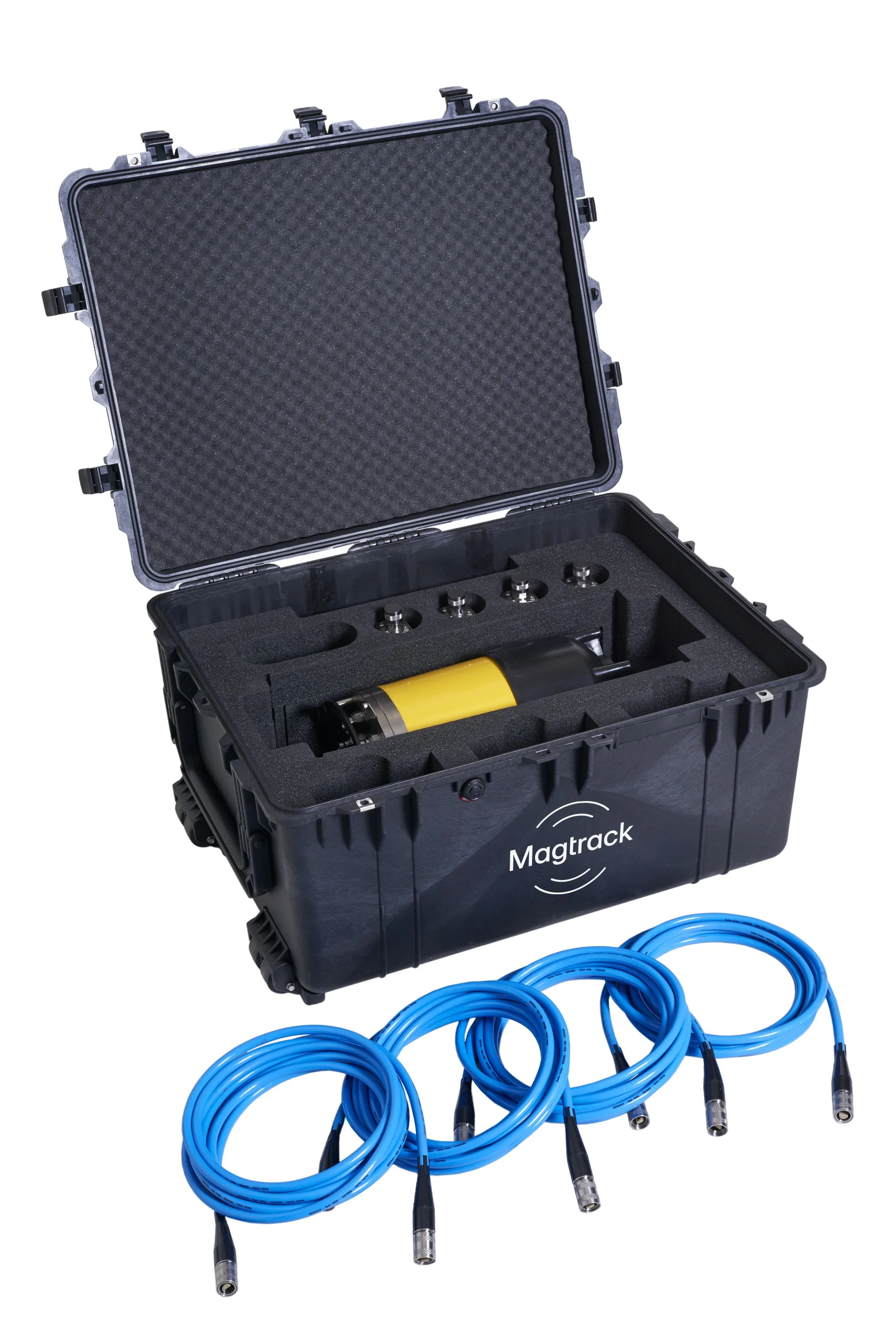

Scope of delivery
1x SEM (subsea electronics module)
4x magnetometer sensors (incl. inclinometers)
4x cables (sensor to SEM)
1x power/coms pigtail
Peli case
Service kit
Software
Instruction manual
The Magtrack 400-series
Magtrack 415
Depth rating: 1500msw
Magtrack 405
Depth rating: 500msw
Get in touch!
We would love to answer any questions you might have about the Magtrack 400-systems,
give you a quote or help you find the system best suited for your needs.
